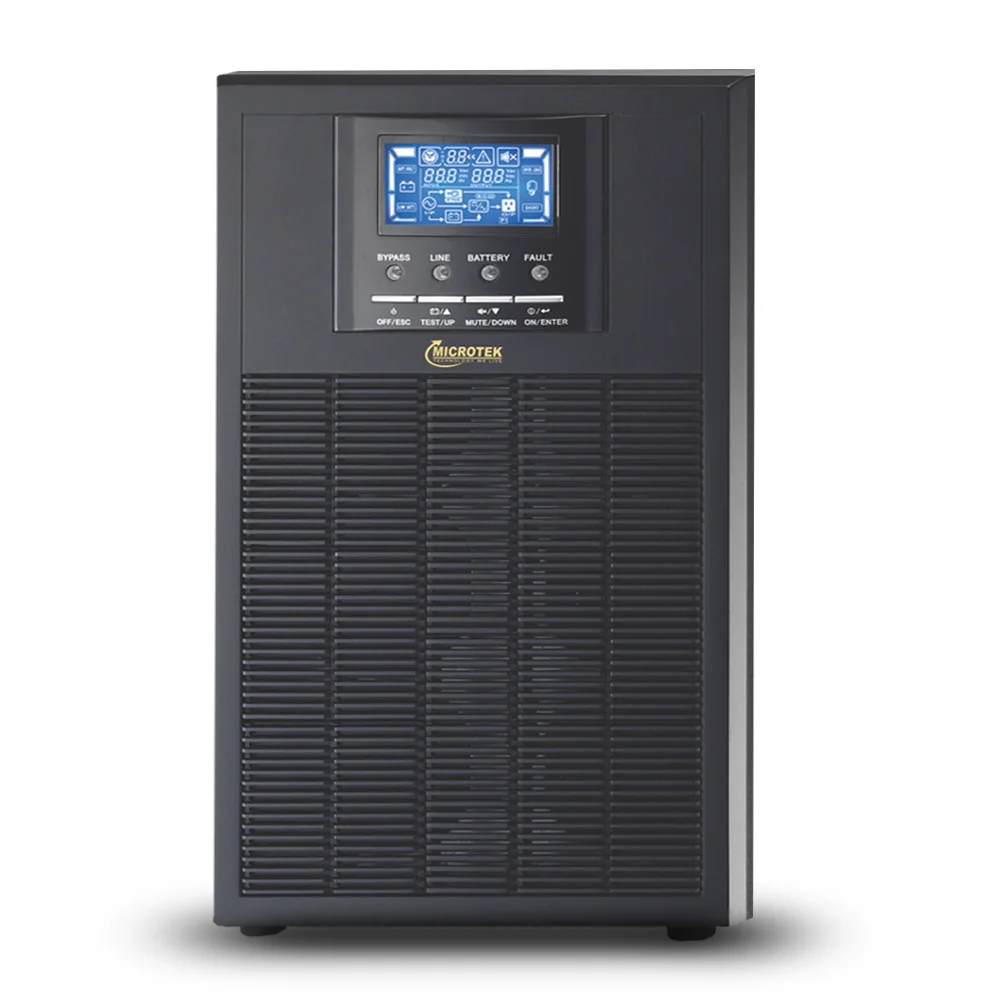

ONLINE UPS MAX LiFe 3KVA 1PH:1PH 48V
₹66,008₹99,990
Buy the Online UPS Max Life 3kVA 1Ph 48V for reliable power backup with extended battery life. Perfect for small to medium applications. Shop today!
Product Details
Technical Specifications
| MODEL | MAX LiFE ONLINE UPS 3KVA/48V |
|---|---|
| CAPACITY | 3000VA/3000W |
| VOLTAGE | 220/230/240 VAC |
| VOLTAGE RANGE | 110-280 VAC@50%Load ; 176-280 VAC@100% Load |
| PHASE | SINGLE PHASE WITH GROUND |
| FREQUENCY RANGE | 46Hz - 54Hz or 56Hz - 64Hz |
| POWER FACTOR | >0.98 @ NOMINAL VOLTAGE (100% LOAD) |
| INPUT CURRENT HARMONIC DISTORTION THD(i) | >8% |
| OUTPUT NOMINAL VOLTAGE | 220/230/240 VAC |
| AC VOLTAGE REGULATION | +1% (BATTERY MODE) |
| FREQUENCY RANGE | Synchronized Range: 50Hz System: 47-53Hz / 60Hz System: 57-63HzBattery Mode: 50Hz+0.1^ or 60 Hz+0.1% |
| CURRENT CREST RATIO | 3:1 (Max) |
| HARMONIC DISTORTION | < 3% THD (Linear Load) :< 5% THD (Non-Linear Load) |
| AC/DC TRANSFER TIME | ZERO |
| INVERTER to BYPASS TRANSFER TIME | 4ms (Typical) |
| WAVE FORM | Pure Sine Wave on AC Input Power Mode & 54 VDC on Battery Mode |
| ON FULL CHARGED BATTERY EFFICIENCY | LINE MODE : 95% / ECO MODE: 99.5% / BATTERY MODE: 92.0% |
| BATTERY VOLTAGE | 48V |
| BATTERY TYPE | Lithium-ion or Lead Acid Battery* |
| FLOATING CHARGE VOLTAGE | 52 VDC (Configurable up to 58 VDC From LCD) |
| OVERCHARGE PROTECTION | 60 VDC |
| CHARGING CURRENT (MAX.) | 60 A (Configurable 10A / 20A / 30A / 40A / 50A / 60A From LCD) |
| LCD PANEL | Load Leval, Battery Leval, AC Mode, Battery Mode, Bypass Mode and Fault Indicator Via LCD |
| BATTERY MODE : Sounding every 5sec | LOW BATTERY: Sounding every 2 Sec. OVERLOAD: sounding every Sec. FAULT: Continously |
| DIMENTIONS PRODUCT (LxWxH) | 465x190x318 (in mm) |
| NET WEIGHT PRODUCT (Kgs) | 15.5 Kgs. |
| OPERATING HUMIDITY / TEMP. | 0-95% RH & Non-Condersing / 0.50°C |
| STORAGE TEMPERATURE | -15°C to 60°C |
| COMMUNICATION INTERFACE | RS-232 and USB. SNMP Card / MODBUS Card (Optional) |
