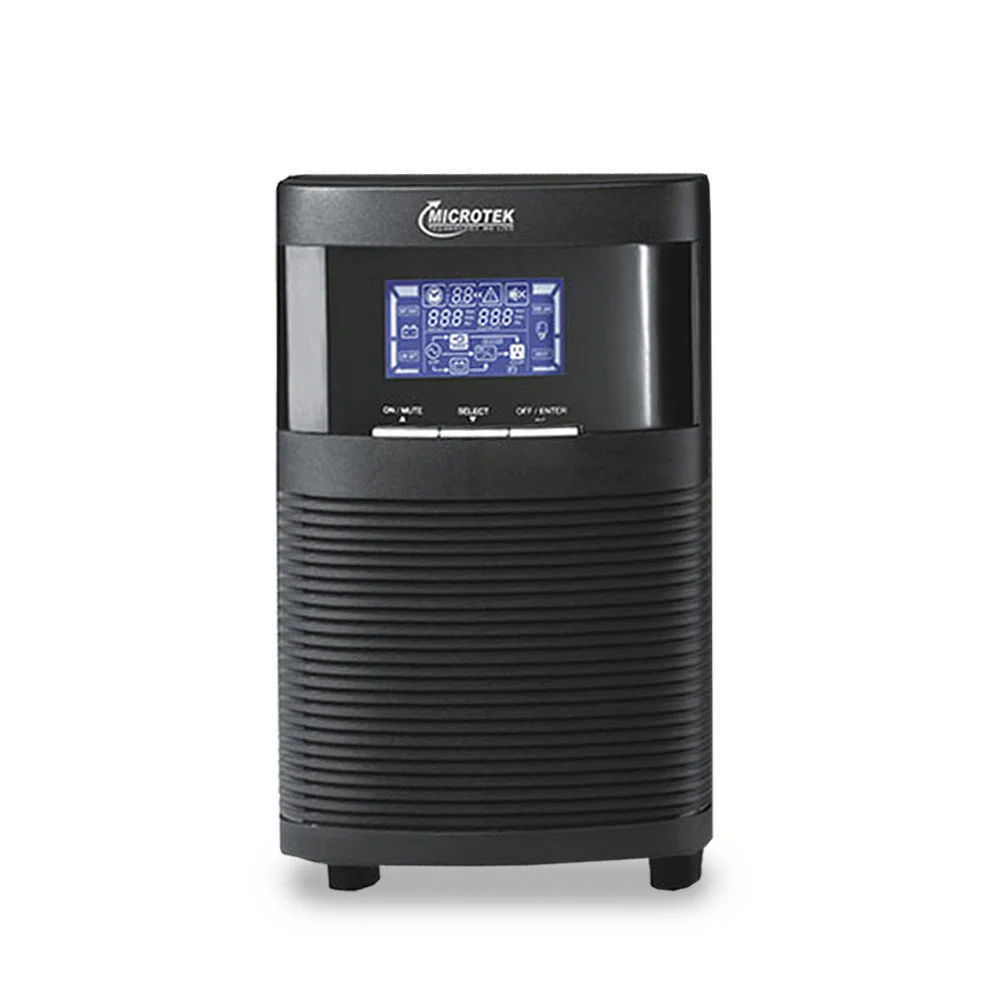

ONLINE UPS E² Series 1KVA 24VDC-IB
₹20,228₹23,690
Buy the Online UPS E-Series 1kVA (24VDC) from Microtek. Efficient and reliable UPS for critical power needs. Shop online for top-quality backup solutions!
Product Details
Technical Specifications
| MODEL NAME / NUMBER | Online UPS E²-IB |
|---|---|
| CAPACITY | 1KVA/800V |
| DC VOLTAGE SYSTEM | 24 VDC |
| INPUT VOLTAGE RANGE | 110VAC+5% - 300VAC+5% |
| FREQUENCY RANGE | 40Hz - 70Hz |
| PHASE | SINGLE PHASE WITH GROUND |
| POWER FACTOR | >0.99 @ FULL LOAD |
| OUTPUT VOLTAGE | 200/ 208/ 220/ 230/ 240VAC |
| AC VOLTAGE REGULATION | +1% (Battery Mode) |
| FREQUENCY RANGE (Battery Mode) | 50Hz+0.25Hz OR 60Hz+0.3Hz |
| CURRENT CREST RATIO | 3:1 |
| HARMONIC DISTORTION | <2% THD (Linear Load) 4% THD (N on-Linear Load) |
| OVERLOAD CAPABILITY | 105%-110%: UPS SHUTS DOWN AFTER 10 MINUTES AT BATTERY MODE OR TRANSFER TO BYPASS WHEN THE UTILITY IS NORMAL. 110%-130%: UPS SHUTS DOWN AFTER 1 MINUTE AT BATTERY MODE OR TRANSFER TO BYPASS WHEN THE UTILITY IS NORMAL. >130%: UPS SHUTS DOWN AFTER 3 SECONDS AT BATTERY MODE OR TRANSFER TO BYPASS WHEN THE UTILITY IS NORMAL. |
| TRANSFER TIME | AC MODE TO BATTERY MODE 0/ INVERTER TO BYPASS: <4ms (Typical 2.5ms) |
| WAVEFORM (Battery Mode) | PURE SINEWAVE |
| EFFICIENCY (AC MODE / BATTERY MODE) | 88% / 83% |
| BATTERY TYPE & NUMBERS | SMF 12V / 9AH X 2 Nos. (In-Built Batteries) |
| CHARGING CURRENT | 1A |
| DIMENTION (LxWxH) | 282x145x220 mm |
| NET WEIGHT | 9.8 KGS. |
| OPERATING HUMIDITY / TEMP. | 20-95% RH @ 0-40°C (N on-Condensing) |
| NOISE LEVEL | LESS THAN 50dBA @ 1 METER (WITH FAN SPEED CONTROL) |
| DISPLAY | LCD DISPLAY INDICATIONS |
| SNMP (OPTIONAL) | POWER MANAGEMENT FROM SNMP MANAGER & WEB BROWSER |
