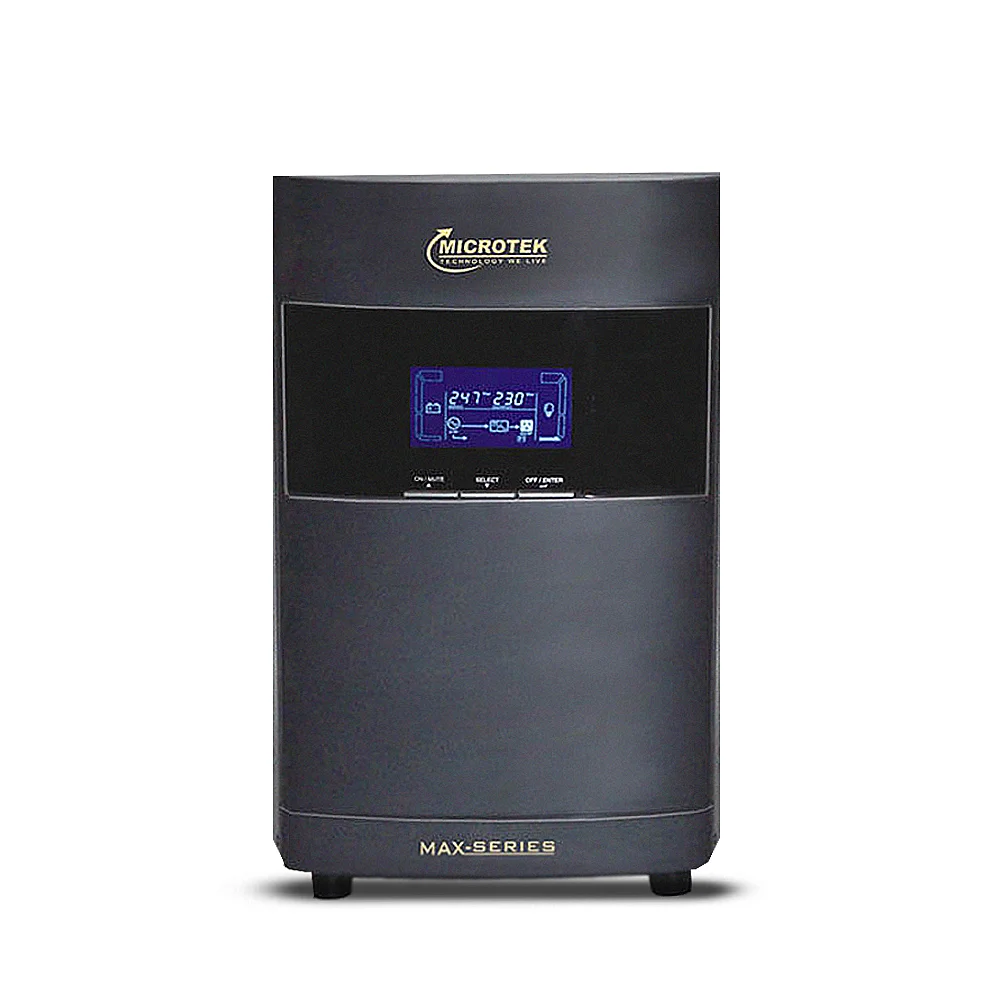

ONLINE UPS MAX+ 3KVA 1PH:1PH 72V
₹39,023₹41,490
Buy the Online UPS 3kVA MAX+ for efficient power backup and protection. Suitable for a variety of applications. Shop now!
Product Details
Technical Specifications
| MODEL | ONLINE UPS 3KVA 1PH:1PH 72V |
|---|---|
| RATED CAPACITY | 3 KVA / 2700 Watts |
| INPUT VOLTAGE RANGE (Load <50%) | 110 ~ 300 V (± 5 V) |
| INPUT VOLTAGE RANGE (Load >50%) | 160 ~ 300 V (± 5 V) |
| FREQUENCY | 40 ~ 70 Hz |
| PHASE | Single Phase with Ground |
| POWER FACTOR | ≥ 0.99 @ full load |
| OUTPUT VOLATGE RANGE | 208 / 220 / 230 / 240 V AC |
| FREQUENCY RANGE (Synchronized Range)FREQUENCY RANGE (Battery Mode) | 47 ~ 53 Hz or 57 ~ 63 Hz50 Hz ± 0.25 Hz or 60Hz ± 0.3 Hz |
| THD (Linear Load) | ≤2% |
| THD (Non Linear Load) | ≤4% |
| OVERLOAD | <130%, 5min turn to Bypass Mode>140% 1.5sec turn to Bypass |
| CREST FECTOR | 3:1 (Max) |
| SHORT CIRCUIT PROTECTION | 5 cycles turn Off Inverter, no transfer to Bypass, provide Alarm (AC Mode), 5 cycles turn Off Inverter, provide Alarm(Battery Mode), Input Fuse blown or Breaker action |
| WAVEFORM | Pure Sinewave |
| TRANSFER TIME(AC Mode to Battery Mode)(Inverter to Bypass) | ZERO<4 ms |
| EFFECIENCY | 85%~ 92% |
| DC VOLTAGE | 72 V |
| CHARGE CURRENT | 9.5 Amps |
| COMMUNICATION INTERFACE | RS232,SNMP (Optional) |
| INDICATION | LCD Display |
| NOISE LEVAL | Less than 50dBA @ 1 Meter (With Fan Speed Control) |
| UPS OVERLOAD / UPS SHORT CIRCUIT | 110% / 300% |
| WARRANTY | Two Years |
