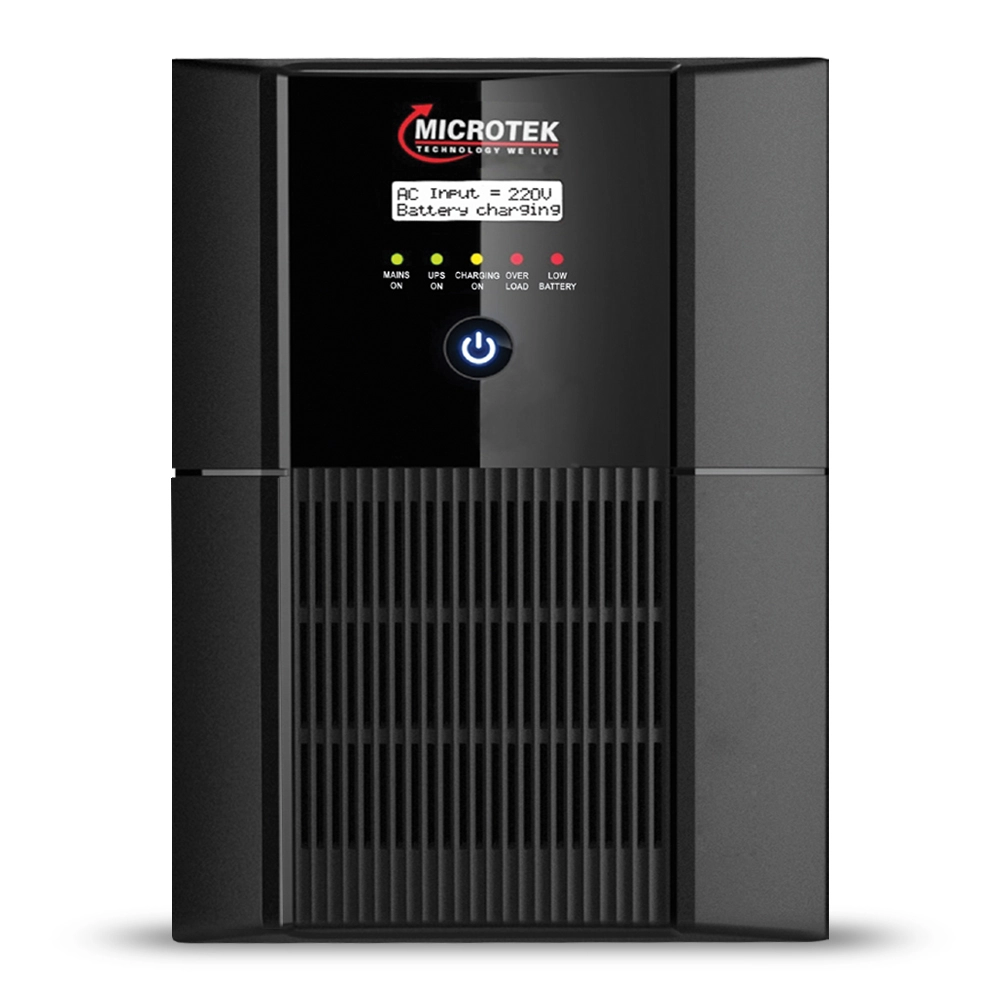

JUMBO HOME UPS -JM SW 6000+/72V
₹39,744₹57,990
Shop the Jumbo Home UPS Model JM-SW-600072V (57kVA) at Microtek. High-performance UPS for extensive power backup. Buy online for powerful solutions!
Product Details
Technical Specifications
| MODEL UPS | JM SW 6000+/72V |
|---|---|
| Capacity / Rating | 5.7KVA / 4560W |
| Standard Input Voltage | 100V~280V |
| Narrow Input Voltage | 180V~260V |
| Output Voltage on Main Mode | Same as Input |
| Output Voltage on UPS mode | 220V+10% |
| Output Frequency on UPS Mode | 50Hz+0.5Hz |
| Switching form mains to UPS and UPS to mains | Automatic |
| Output wavefrom on mains mode | Same as input |
| Output wavefrom on backup mode | Pure Sinewave |
| Battery charging current | Max Charge Current 20A+3A |
| Battery Charger | Boost Based PWM Control Multi-Stage IBM technology |
| Efficinecy | >80% |
| Input Brown Out Voltage | 100V+10V |
| UPS Overload | 108% of the Rated Capacity |
| Technology | DSP Based Smart Control Design |
| Auto Reset Feature | Yes |
| Environmental Parameters | Operating Temprature: 0~45*C / Acoustic Noise at 1 Mtr: <60dBRelative Humidity: MAX 95% Non Condensing / Thermal Management: Integrated cooling (Fan & Heat sink) |
| Mains to Bypass | Rotary/Rocker Bypass Switch |
| Display | LCD/LED Display Indicator |
