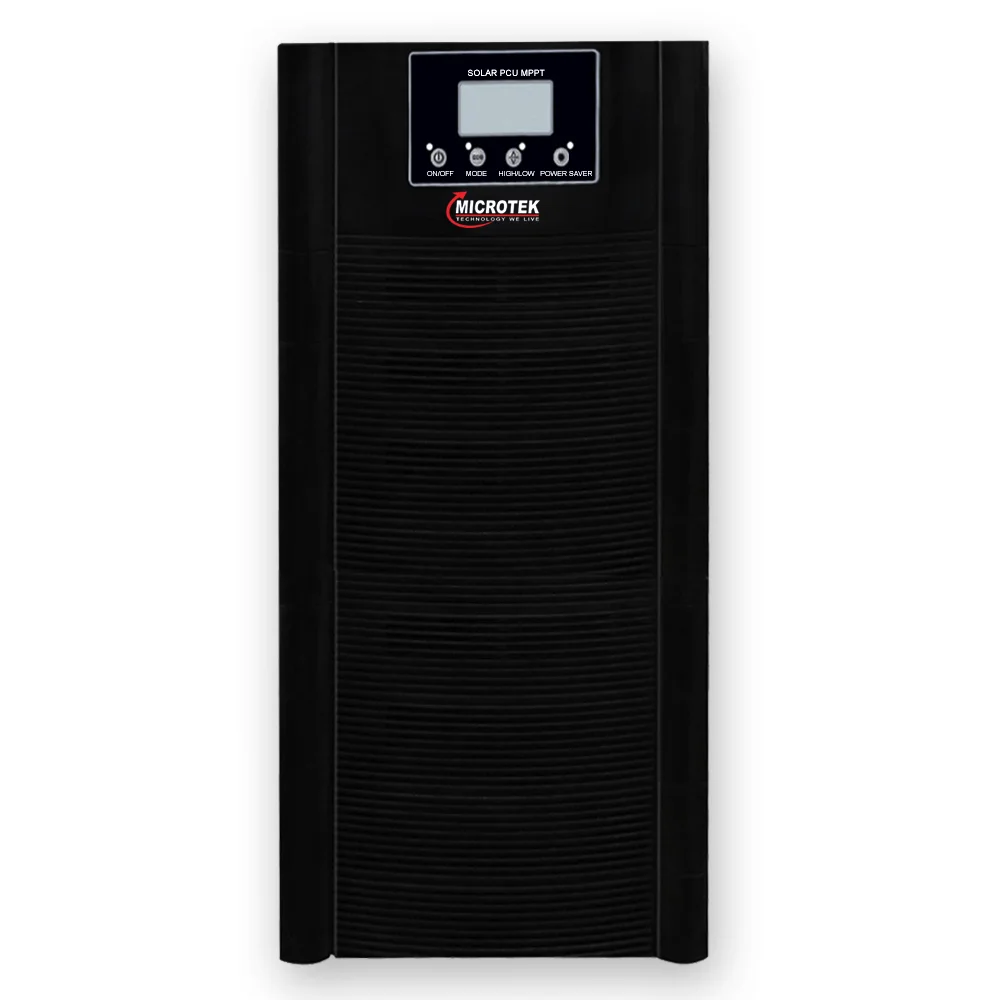

HI-END MPPT PCU 10070/120V
₹1,16,081₹1,94,990
Shop the Hi-End MPPT PCU 10070 120V for superior solar power management and efficiency. Perfect for advanced solar systems. Buy now!
Product Details
Technical Specifications
| MODEL | PCU MPPT 10070 / 120V |
|---|---|
| PV Controller Topology | MPPT |
| Rated Capacity | 10KVA |
| Battery Nominal Voltage | 120V |
| Grid Input Voltage Range | NORMAL MODE: 100V~280V |
| Maximum Solar Input Power(W) | 9250W |
| Maximum Solar Input Voltage (VOC) | 350Voc |
| MPPT Oeprating Voltage Range (VMP) | 180V~280V |
| No. Of Output Phase | 1Phase |
| Inverter Output Voltage at Nominal DC | 230V+3% |
| Output Frequency | 50Hz+1% |
| THD | <3%(at Linear Load) |
| Maximum PV Input Current (A) | 34 + 1A ( 17A/ Channal, Total Channel-2 ) |
| Peak Charge Controller Efficiency | 98% |
| Max. Battery Charging Current From PV (A) | 40 Amps:(Defualt) Settable From 5 to 50 Amps For Battery |
| Max. Battery Charging Current From Grid (A) | 16 Amp Default(Settable From 5Amp to 16Amp) |
| Continious Output Power (W) | 8 000W |
| Transfer Time | NORMAL MODE: Mains to Back-up <40mSec Back-up to Mains <15mSec |
| Protections | Battery Over-Voltage, Overcharge, PV Reverse Polarity, PV Reverse Current Flow, PV Surge, Overload, Inverter Over Temprature & Load Short Circuit Protections |
| Intelligent Sharing of PV Current & Grid | State of the Art Inbuilt Technology ensures four Leval of Solar Saving Setting SL1, SL2, SL3 & SL4 Selectable From Front Panel Meeting Requirement of all Type of Users. |
| Clearance on All Side for Installation | Recommended 1 Feet |
| DC Input Volt. High Cut Protection/Recover | Available |
| Most Advanced Real Time Clock Technology | RTC ensures Optimum Saving Of Solar Energy |
| Operating Temperature / Realative Humidity | 0~45°C / 5%-95% Non Condensable |
| Weight (Kgs.) | Net: 78.670 / Gross: 83.500 KG |
| Dimension (LxWxH) in MM | 484x277x775 |
